Section 3 Electric shelves

Chapter 6 Tera Calculation 3_Logistics Equipment Space Calculatio

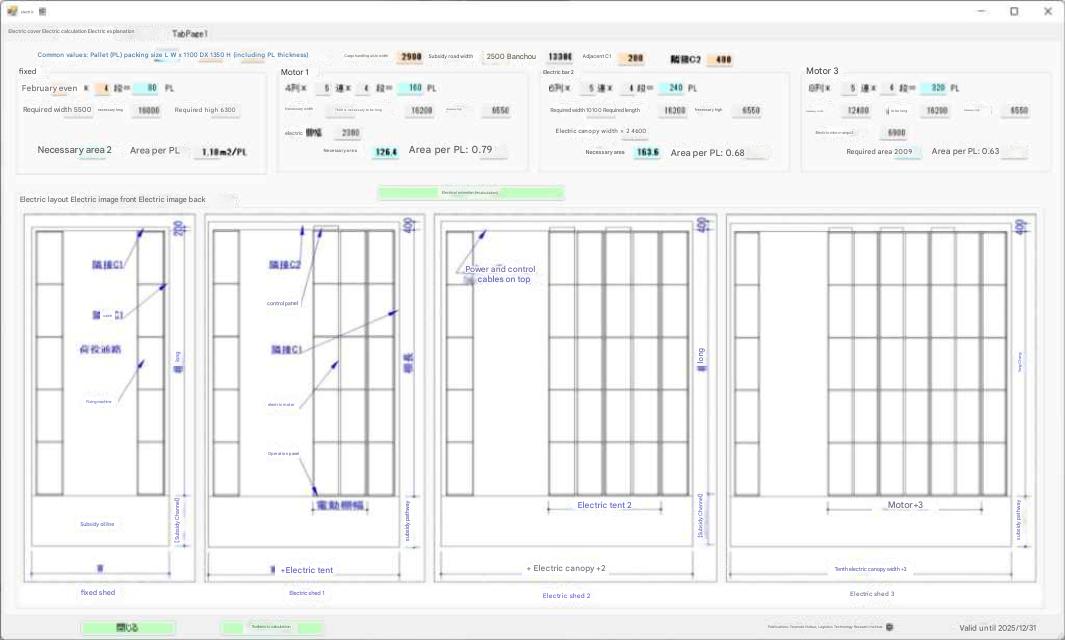

Calculation screen
For electric shelves, PL fixed shelves are placed on electric trolleys and moved to share the loading aisle.
The height of the shelves is 250 mm. For PL fixed shelves placed on trolleys, see PL fixed shelves in Section 2
.
PL dimensions and adjacent clearance
The electric shelf area has been recalculated to reflect the change in PL dimensions.
An auxiliary aisle is not required if it is close to the shelf area. There is a control panel behind the shelf, so 400mm of adjacent clearance is required.

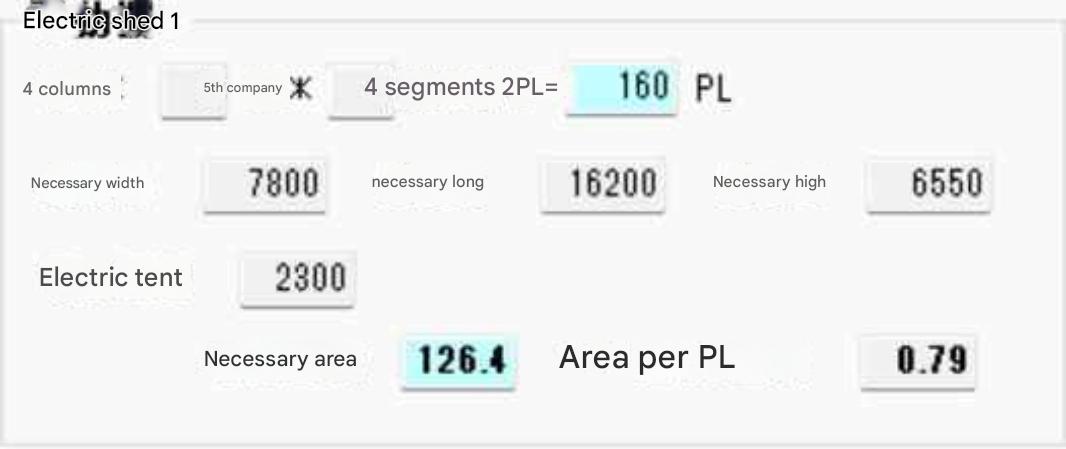

Required area and area per PL



4 rows * 5 rows * 4 shelves * 2 PL = 160 PL

The area per PL of electric shelf 1 is calculated to be 0.79 m2/PL, including the area of ​​the auxiliary aisle. However,

if the area of ​​the auxiliary aisle is excluded, the installation area becomes 107 m2, or 0.67 m2/PL.
