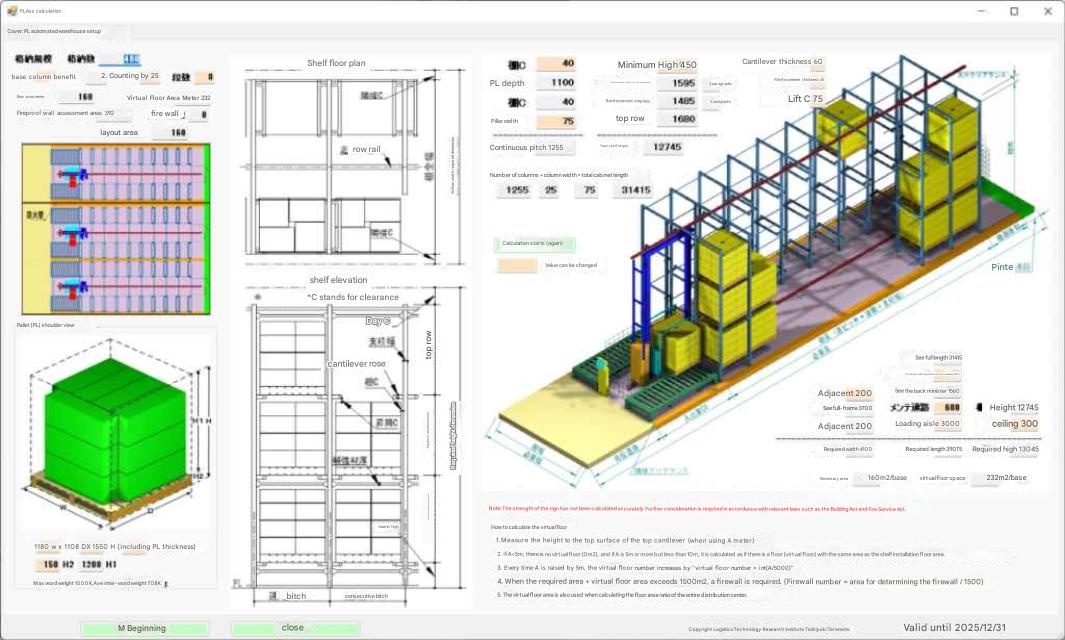

| Calculation method and firewall (virtual floor)） |
 |
The storage capacity per unit is calculated as: Columns * Rows * Rows. The storage capacity is calculated using the number of units, rows, and rows. The installation area is automatically calculated. By changing the Tera settings for shelf specifications and pressing the "Start Calculation (Re)" button, the installation area will be calculated based on the changes . Firewalls are installed every 1,500 m², but a virtual floor is added in 5-meter increments . For example, if the top of the highest cantilever is less than 5 m, no virtual floor is required . If the top of the highest cantilever is between 5 m and 10 m, the virtual floor = shelf installation area (loading aisle, excluding inspection routes). If the top of the highest cantilever is between 10 m and 15 m, the virtual floor = shelf installation area * 2) . A firewall is required for every 1,500 m² (installation floor + virtual floor). |
