Section 4 PL stowage and storage scale

Chapter 5 Tera calculation 3 Utility

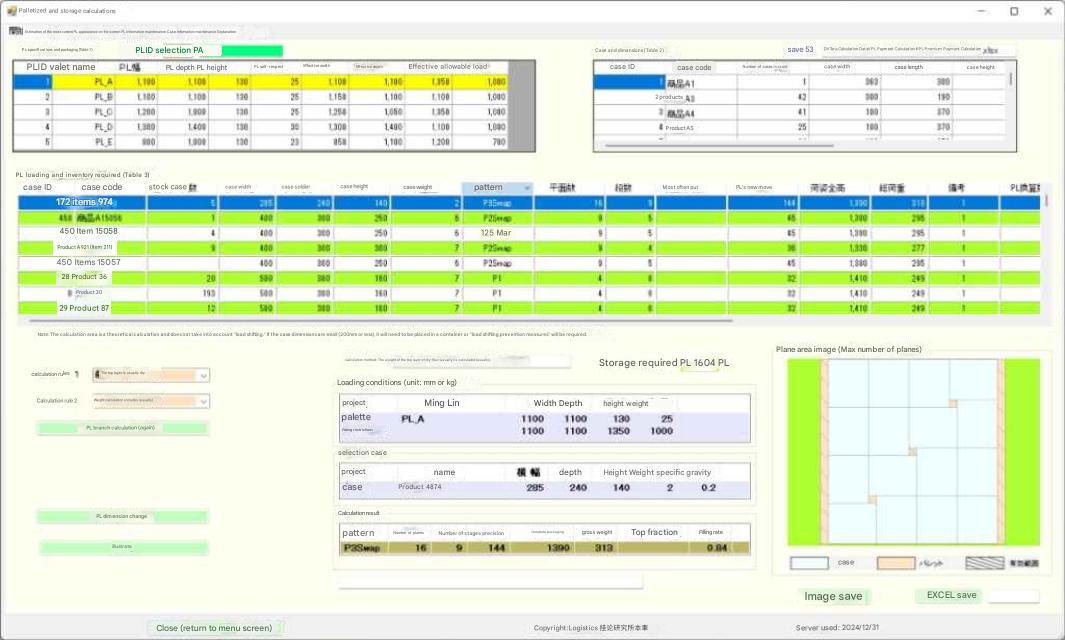

Calculation screen
 Calculates the PL loading module from the case dimensions for each product, and calculates the required PL quantity from the inventory quantity and PL loading quantity.
Note: This software is not linked to shipping data or Tera calculations.


Clicking on a record row in the table will display the loading plan in conjunction with it.

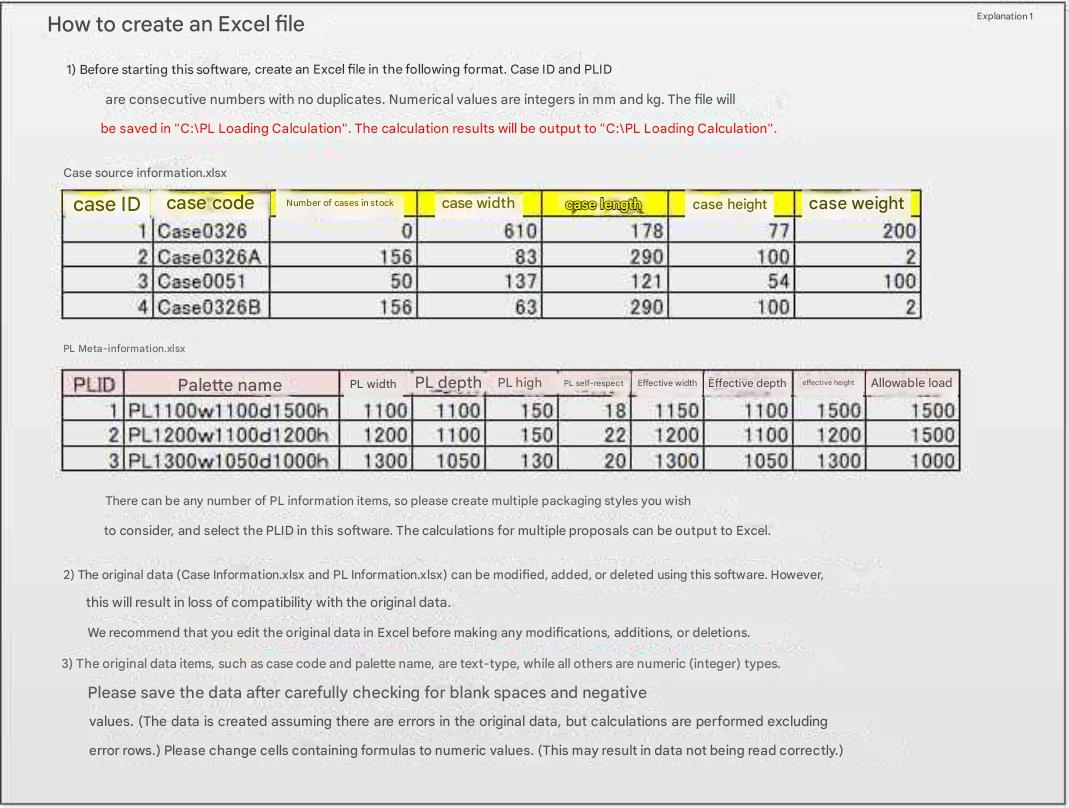

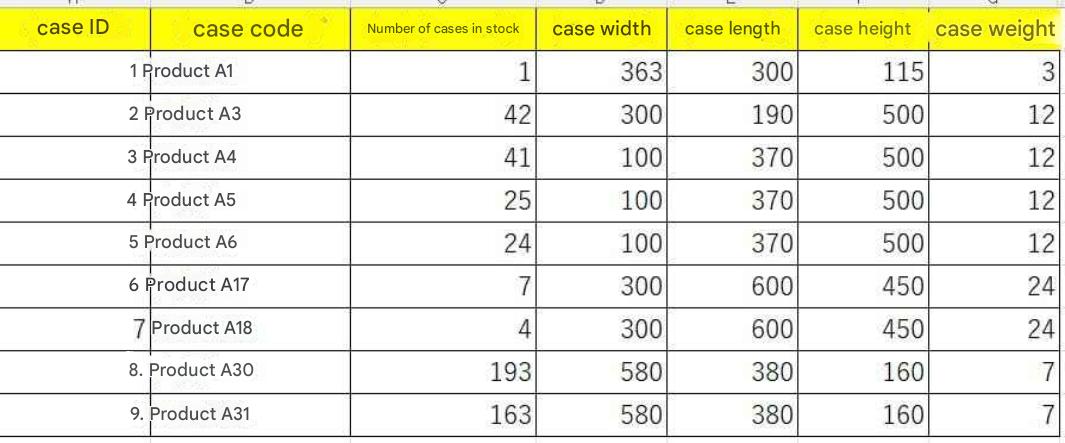

Case count and dimensions

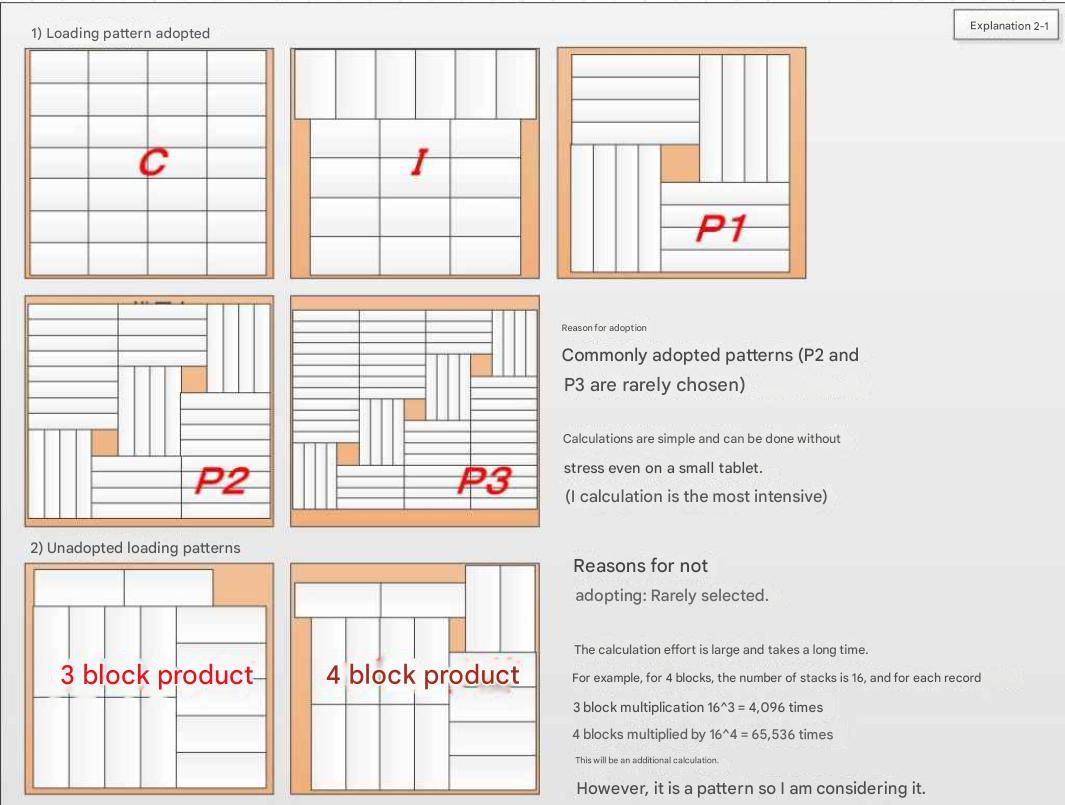

The number of items stored on the plane
is calculated from the plane dimensions, and the number of stacking tiers is calculated from the height

. Items that cannot be loaded onto PL are automatically identified based on the case dimensions and case weight, and are displayed as not being able to be loaded.

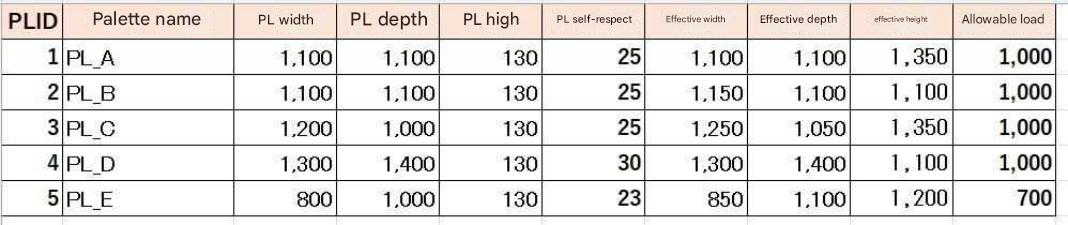

PL specifications and packaging
Select a palette from the Yuo on the left

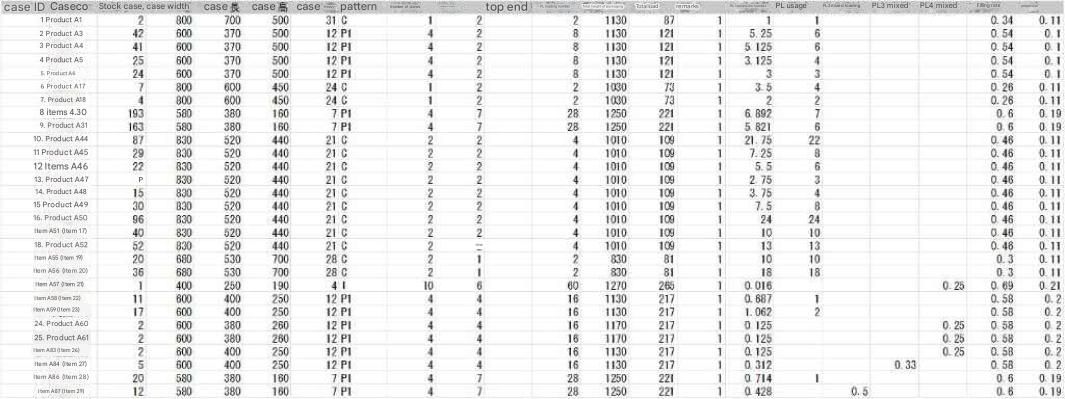

Excel output
After calculation, output to Excel (Tera calculation Data\PL loading calculation\PL loading calculation result 4 mixed 20250109-152656 Top surface plane (normal) Weight calculation included (normal))

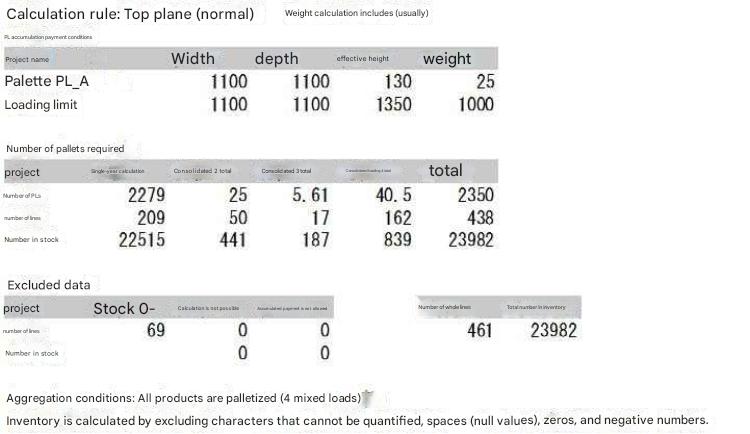

集計として

0.5PL or more is rounded up. Single load
: 0.5PL or less, 0.33PL or more is 2-pack.
0.33PL or less, 0.25PL or more is 3-pack.
0.25PL or less is 4-pack.

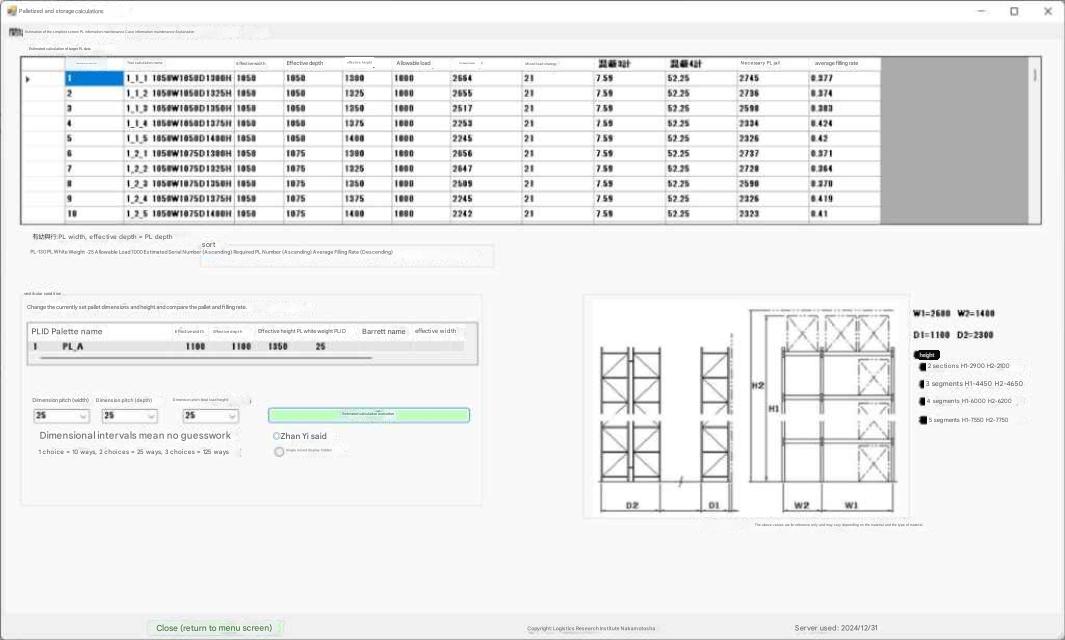

Estimation of optimal PL packaging
 This program estimates how storage efficiency and area change depending on various PL dimensions.
