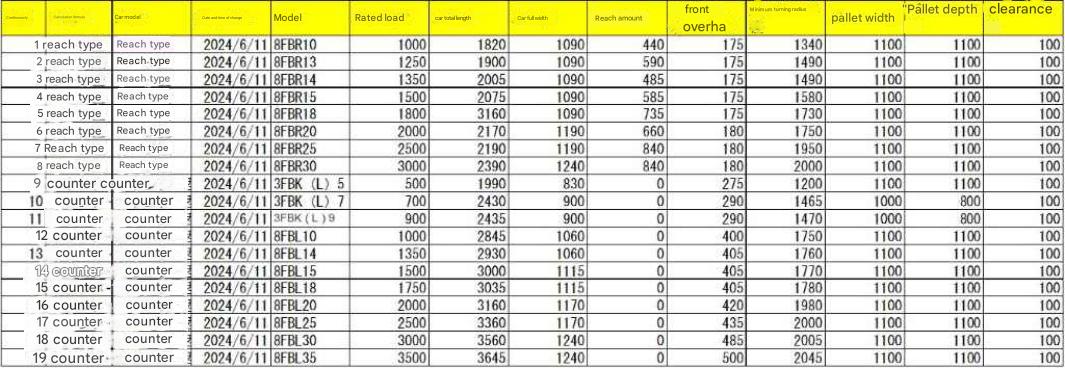

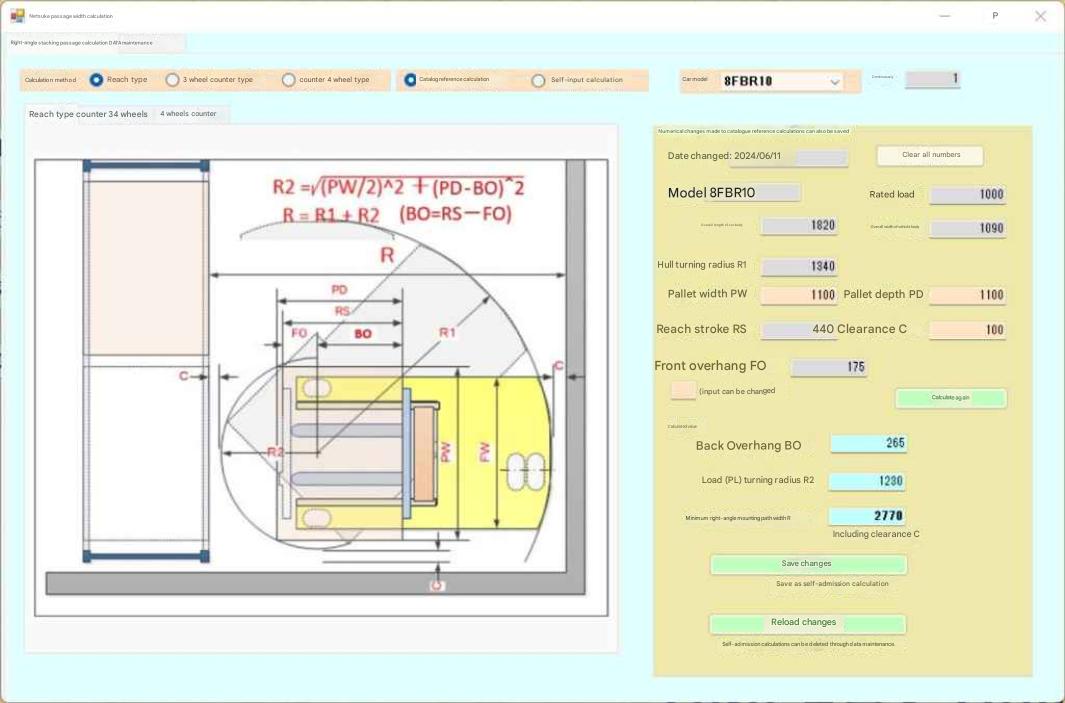

Select the forklift model and type and press the recalculate button.
If the manufacturer, model and type are the same, the loading aisle width
will be roughly the same.
|
| Loading calculation formula |
 |

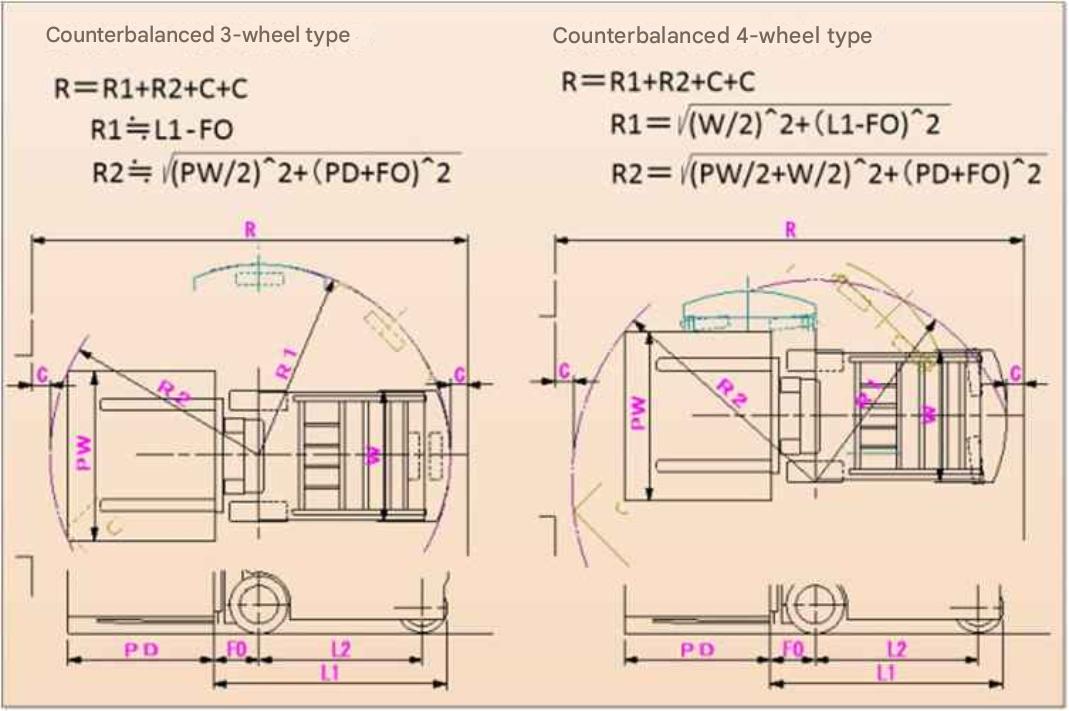

Three-wheeled forklifts have a pivot point at the center of the front axle,
while
four-wheeled forklifts have a pivot point on the outside of the front axle.
For both types,

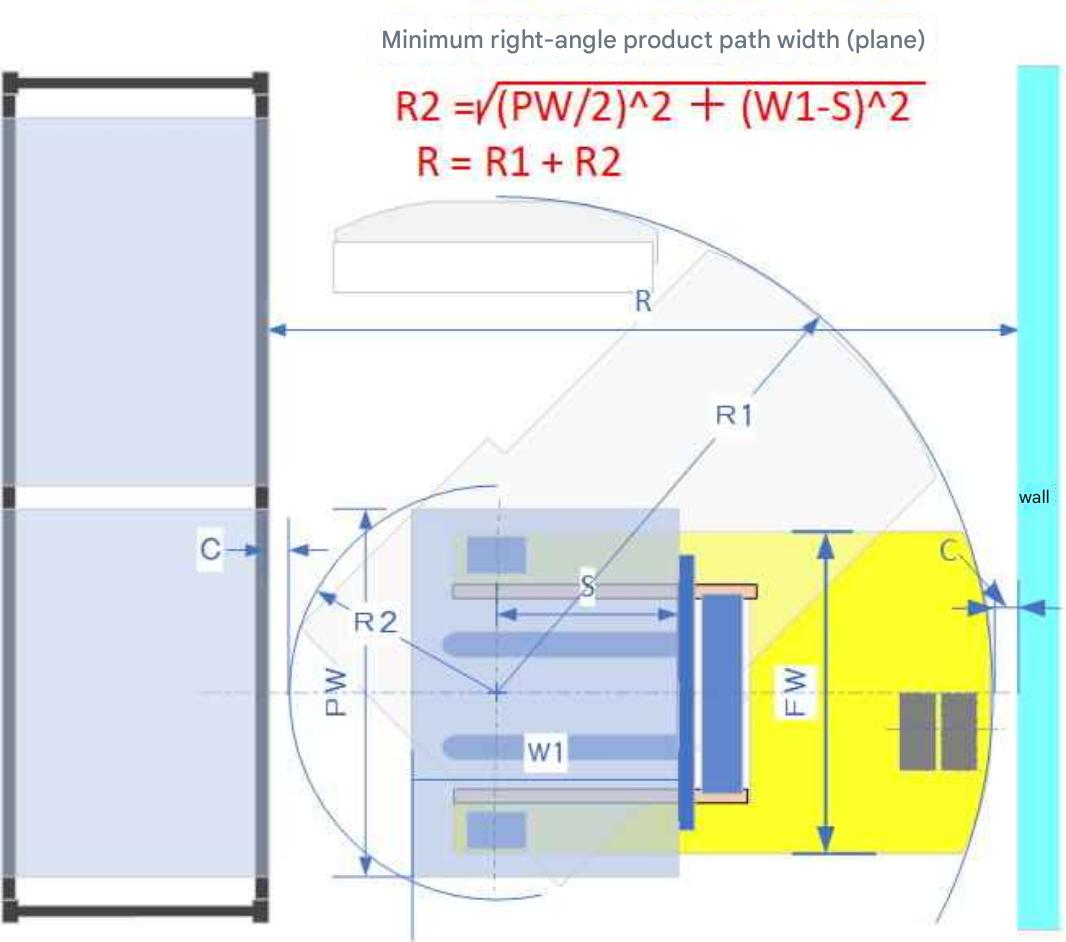

the loading aisle width R is R=R1+R2+C
C (clearance is usually 100mm). |
|
|
