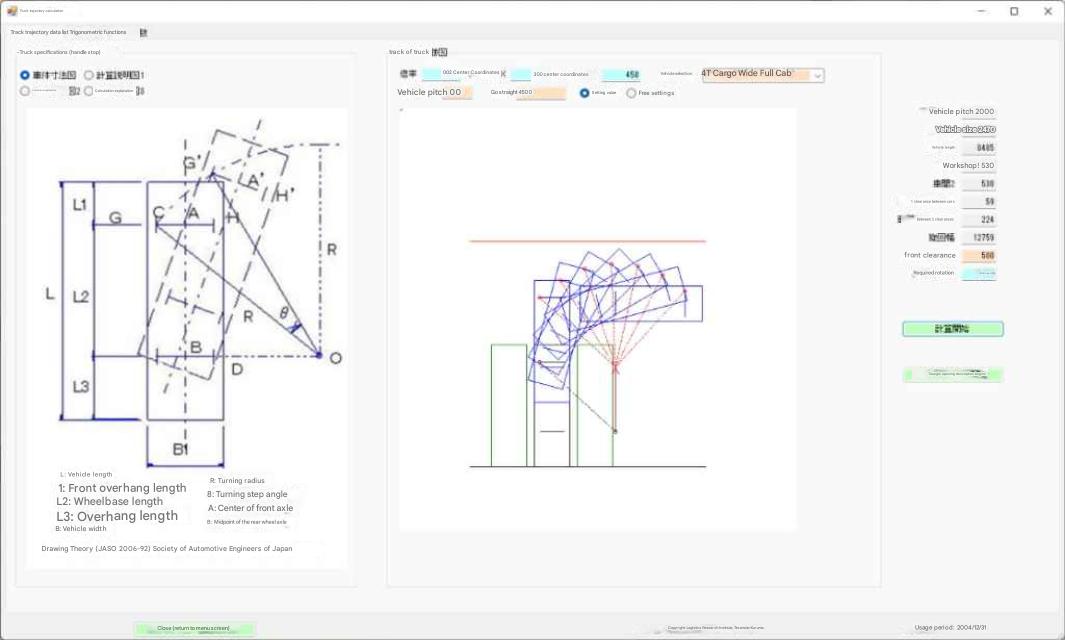

| Check the calculated values and adjust the vehicle pitch and straight-ahead values to find the required turning width. |
 |
Vehicle pitch is determined by the delivery center's loading exit.

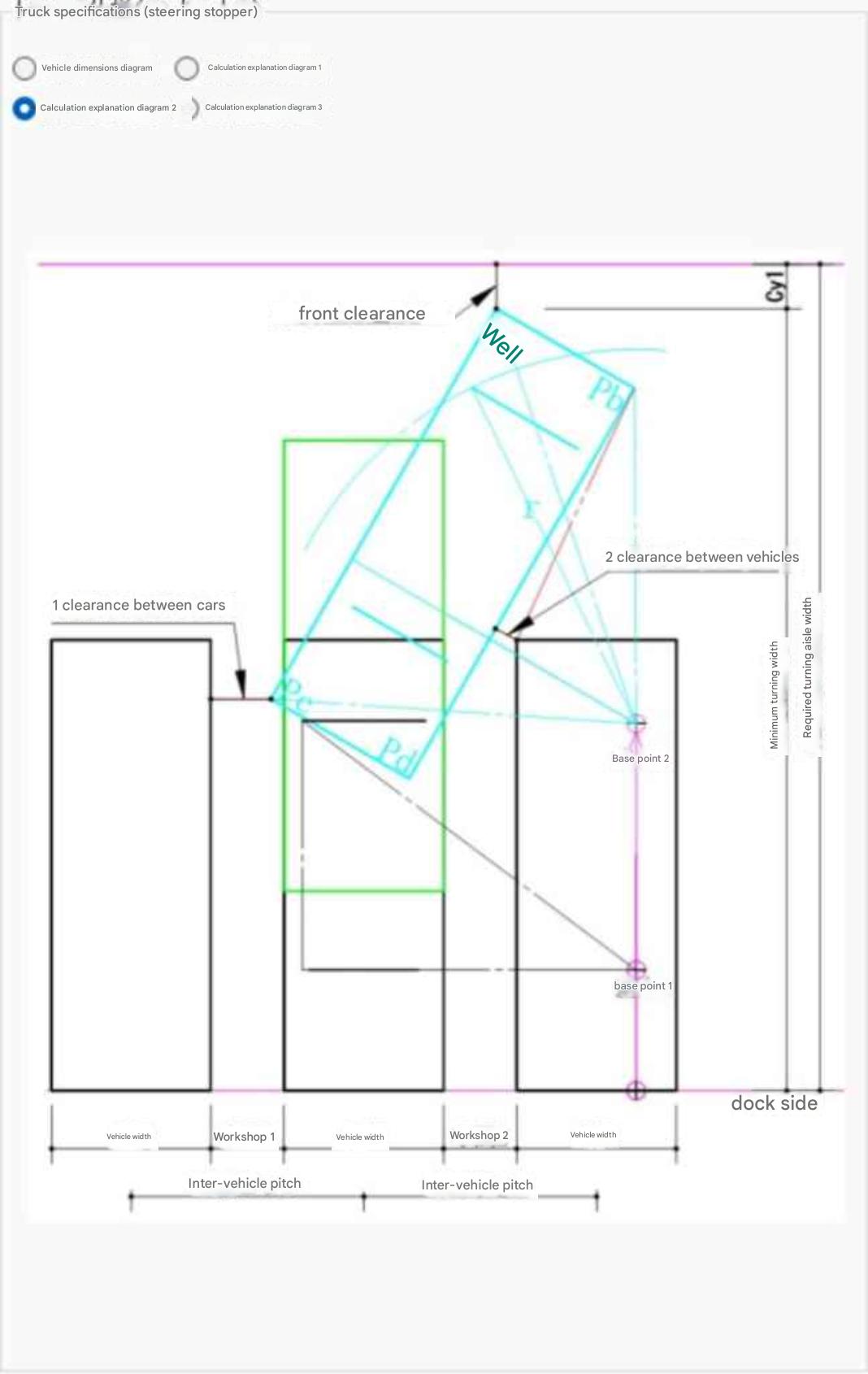

When there is a large difference between vehicle clearance 1 and vehicle clearance 2, it is necessary to consider the possibility of changing the turning center (base point 2) by switching vehicles.
The direction of the forward clearance takes into consideration other factors such as green areas, parking lots, and pedestrian walkways.
Calculations for trailers are currently being prepared. |
|
